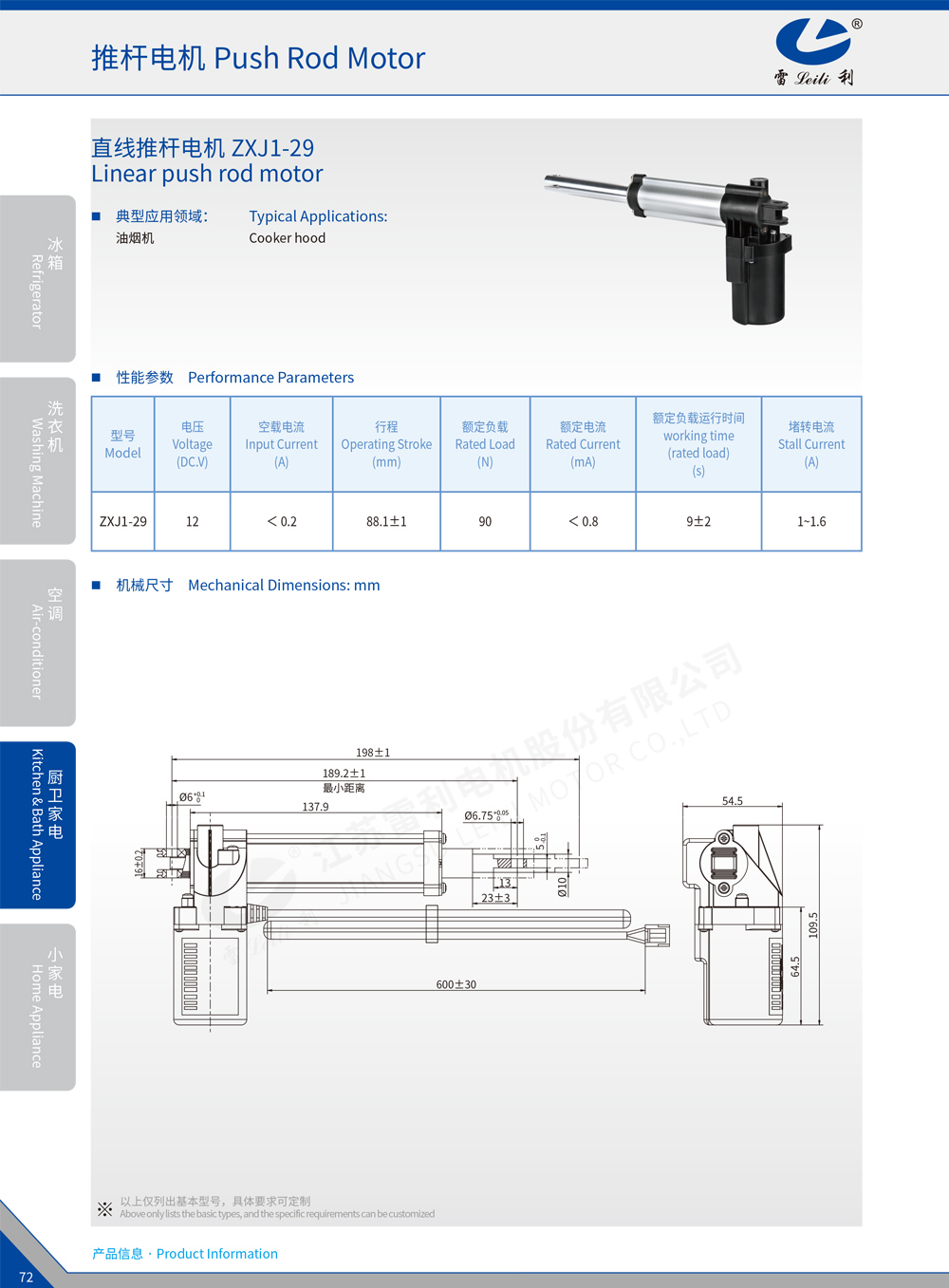

產品參數
型號 Model |
電壓 Voltage (DC.V) |
空載電流 Input Current (A) |
行程 Operating Stroke (mm) |
額定負載 Rated Load (N) |
額定電流 Rated Current (mA) |
額定負載運行時間 working time (rated load) (s) |
堵轉電流 Stall Current (A) |
ZXJ1-29 | 12 | < 0.2 | 88.1±1 | 90 | < 0.8 | 9±2 | 1~1.6 |

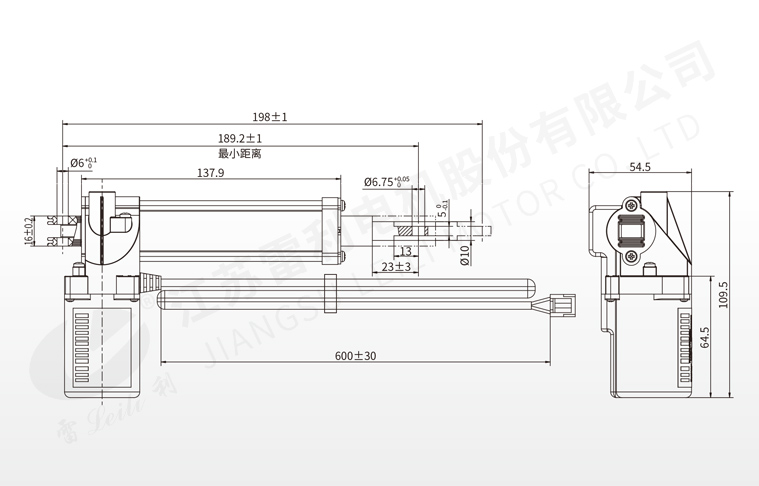

機械尺寸
