產品介紹
立即咨詢
PDF下載產品參數
| 額定電壓 Rated Voltage (V AC) |
起動電壓 Starting Voltage (DC.V) |
額定頻率 Rated Frequency (Hz) |
額定電流 Rated Current (mA) |
額定功率 Rated Power (W) |
絕緣電阻 Insulation Resistance DC500V (MΩ) |
絕緣耐壓 Dielectnic Strength AC600V2(mA)1s |
開閥行程 Operating Stroke (mm) |
| AC 220 | 排水電機：≤ 187 排水泵： ≤ 187 Drain Actuator: ≤ 187 Upper drain pump: ≤ 187 |
50 | 排水電機：≤ 30 排水泵：≤ 350 Drain Actuator: ≤ 30 Upper drain pump: ≤ 350 |
排水電機：≤ 6 排水泵：≤ 35 Drain Actuator: ≤ 6 Upper drain pump: ≤ 35 |
≥ 100 | AC1500 1min, 0.5mA |
19~22 |

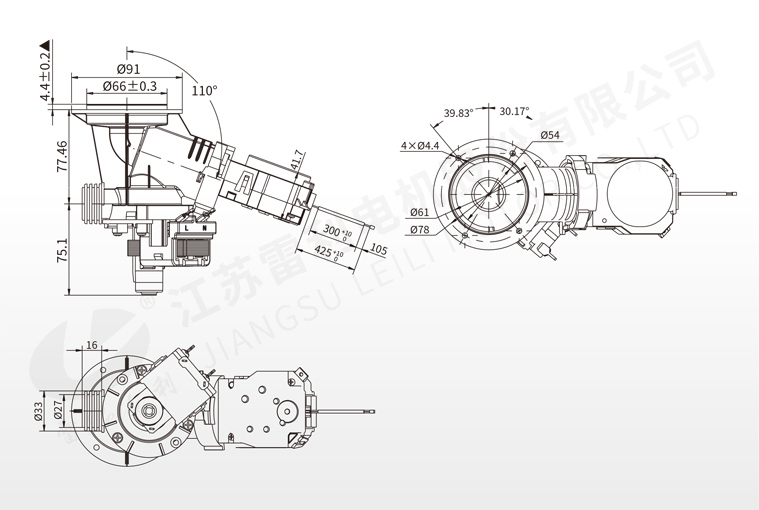

機械尺寸
